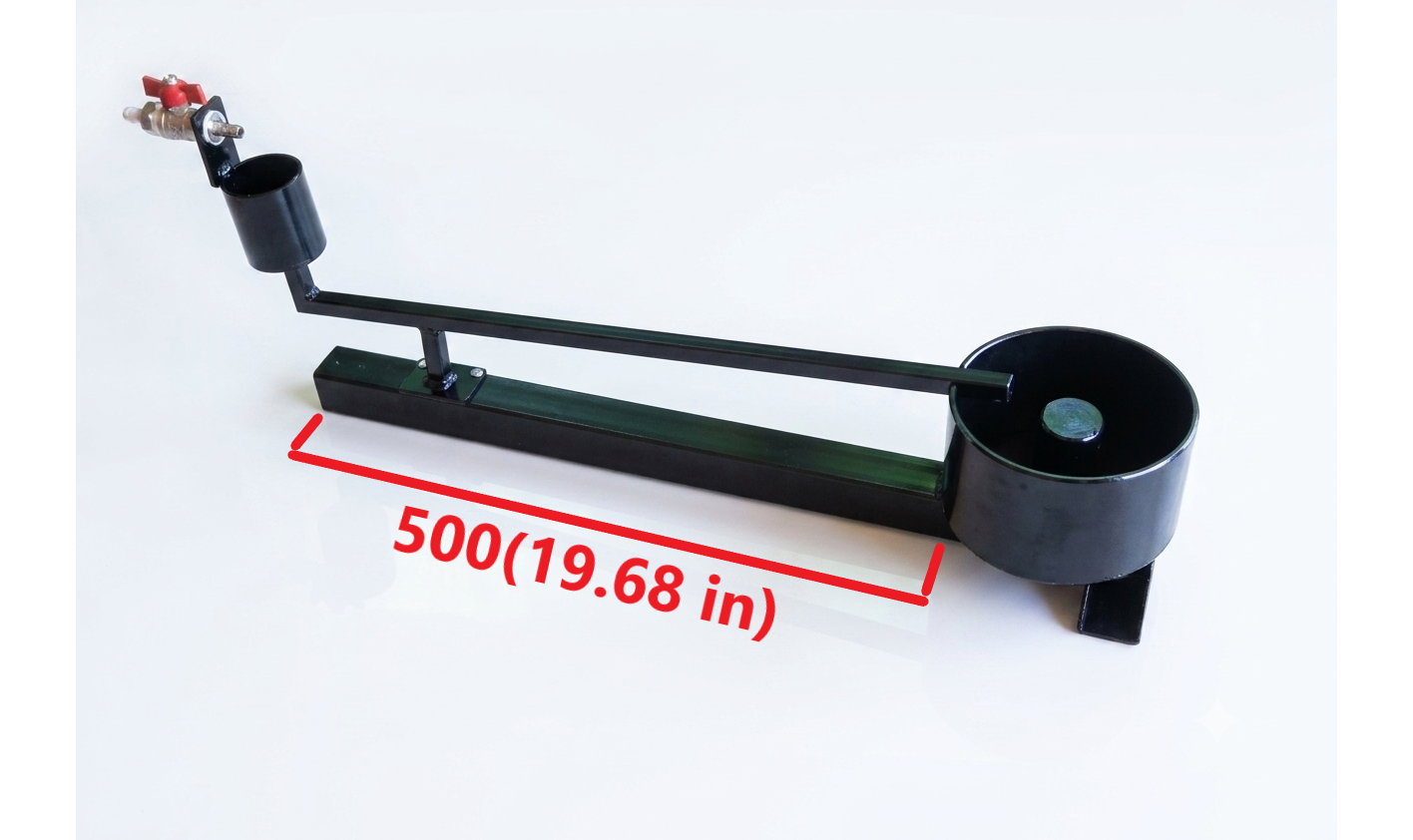

A 20 kW waste oil burner with a 500 mm extended tube

Waste Oil Burner Kit (Compatible with Various Types of Fuel)

This waste oil burner is designed to operate with various types of oil, including motor oil, transmission oil, vegetable oil, and others. It is ideal for use in wood-fired stoves and solid-fuel boilers.

Oil consumption:
0.8–2 L per hour

Adjustable operation:
The combustion intensity can be easily adjusted by changing the oil flow (using a valve) and the air supply.

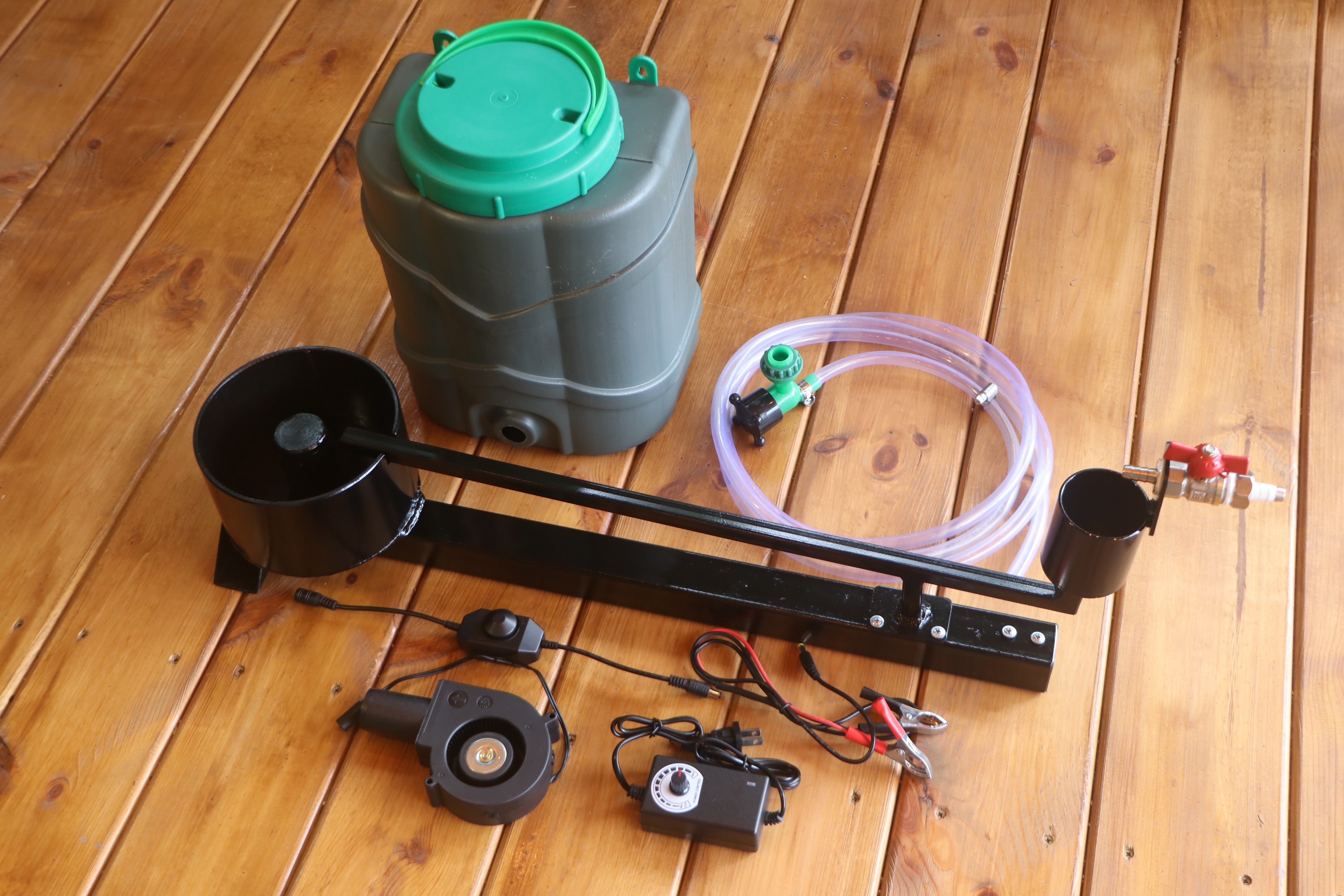

Included components:

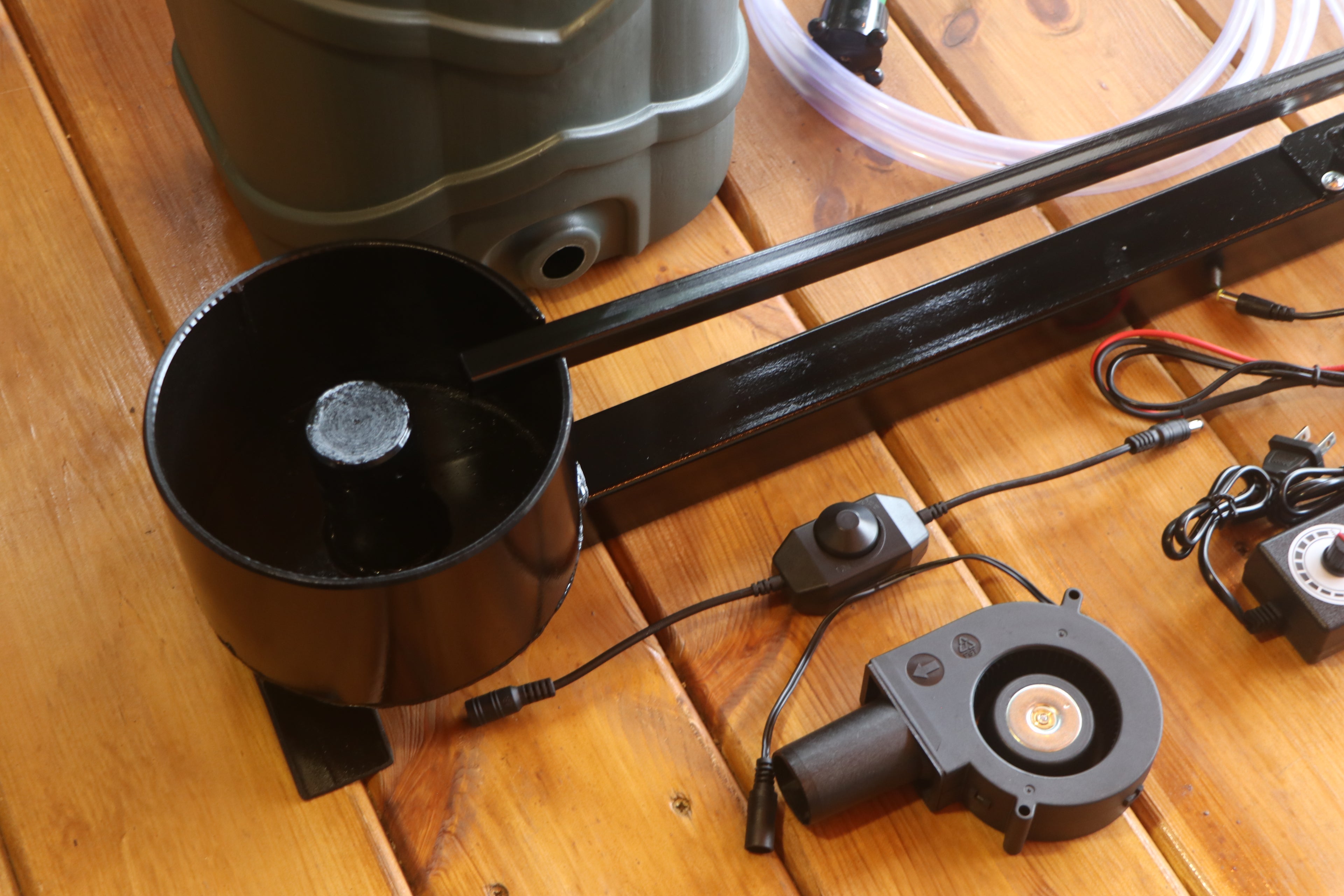

 Waste oil burner.

Oil supply tube.

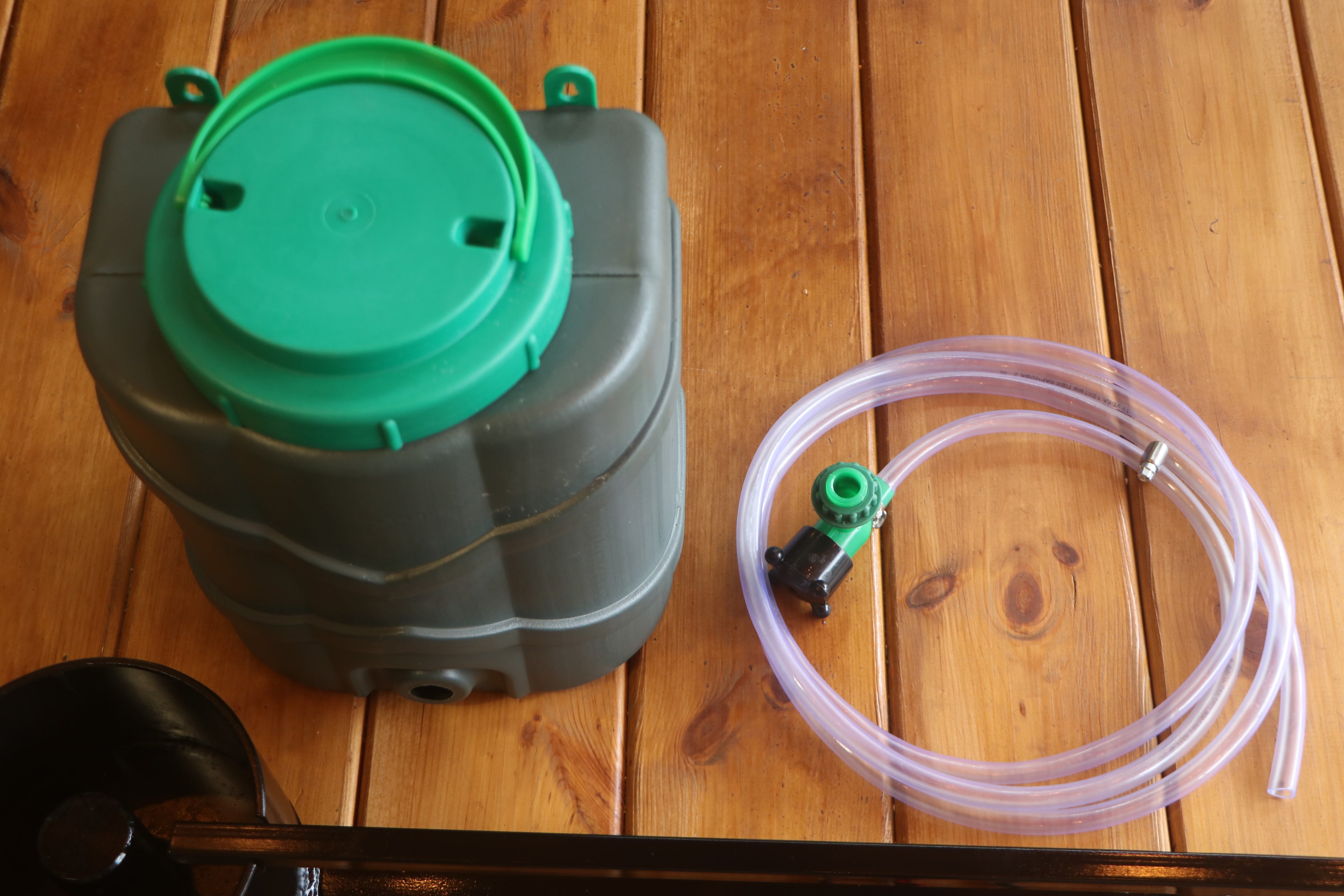

10-liter fuel tank

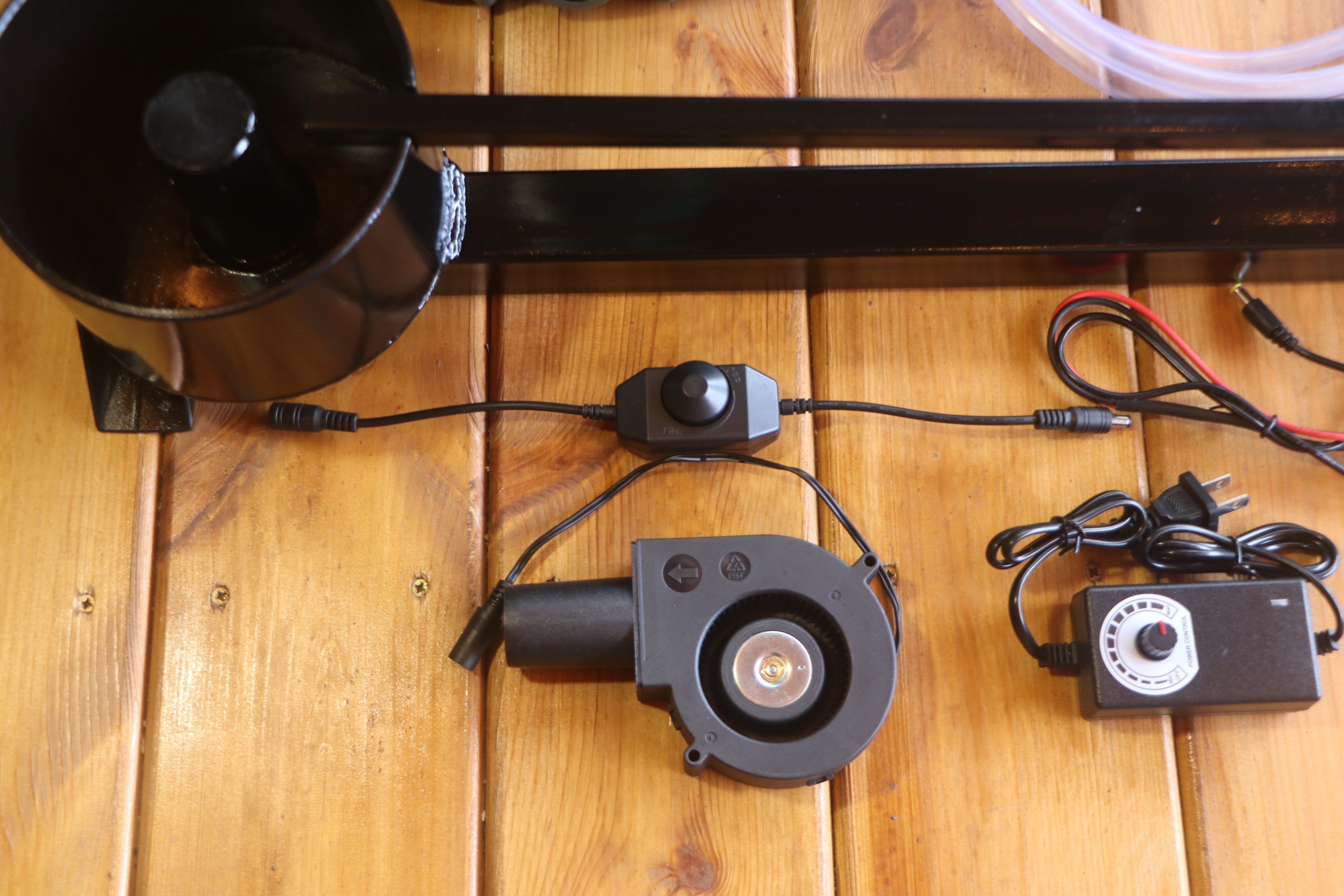

Fan (up to 5000 rpm)

Speed controller (100–220 V)

3-meter hose

Ball valve

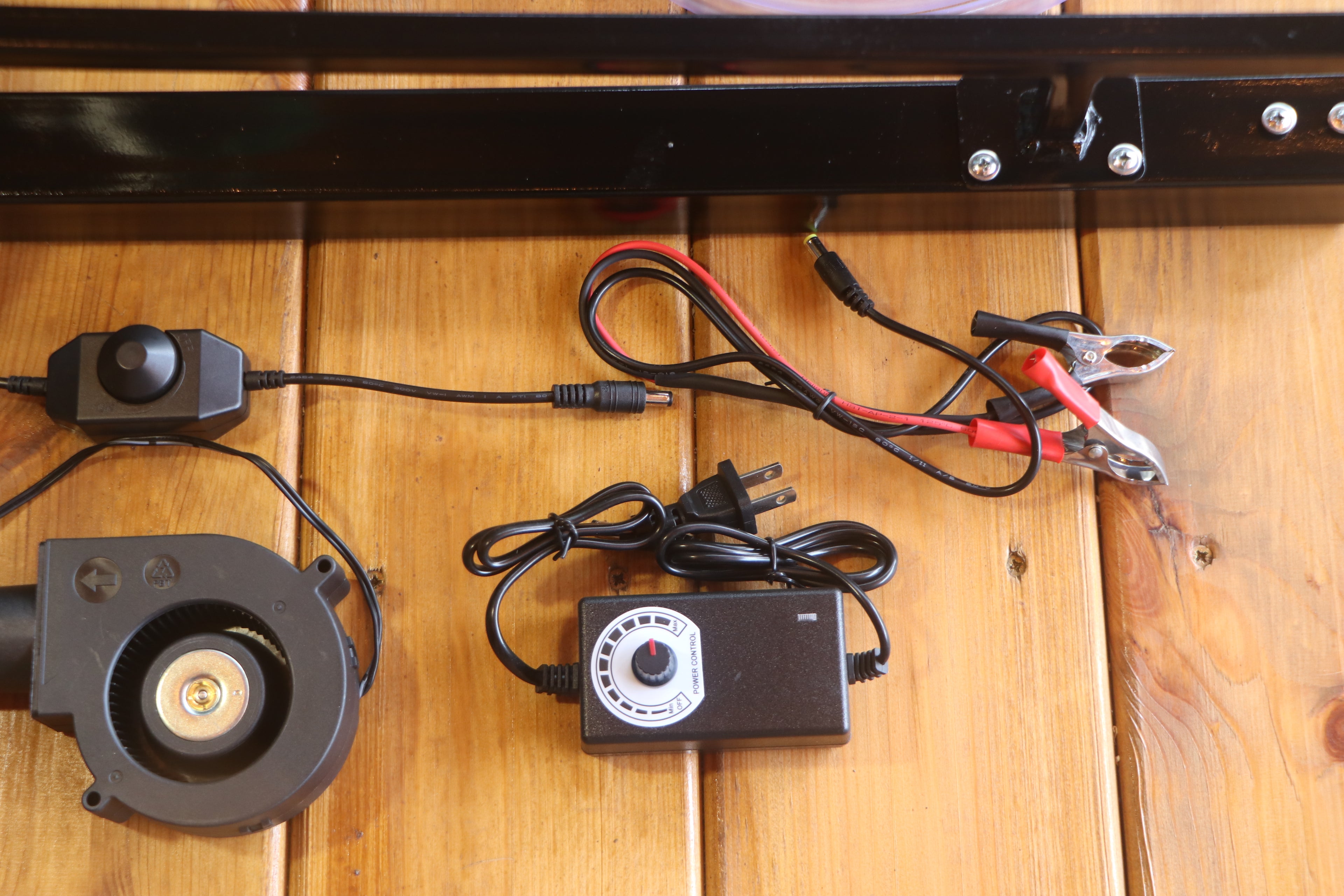

Alligator clips for connecting to a 12 V battery

A controller for adjusting fan speed when operating on battery power.

Dimensions:

Burner:

Outer diameter: 160 mm (6.29 in)

Height: 130 mm (5.11")

Length (without fan): 650 mm (25.59 in)

Length (with fan): 750 mm (29.53 in)

Overall height: 280 mm (11.02 in)

Heat output:
Up to 20 kW

Important safety information:

For fire safety and to prevent excessive heat loss, a metal protective screen (not included) must be installed over the firebox opening.
