20 kW smokeless waste oil burner.

Waste Oil Burner Kit (Compatible with Various Types of Fuel)

This waste oil burner is designed to operate with various types of oil, including motor oil, transmission oil, vegetable oil, and others. It is ideal for use in wood-fired stoves and solid-fuel boilers.

Oil consumption:
0.8–2 L per hour

Adjustable operation:
The combustion intensity can be easily adjusted by changing the oil flow (using a valve) and the air supply.

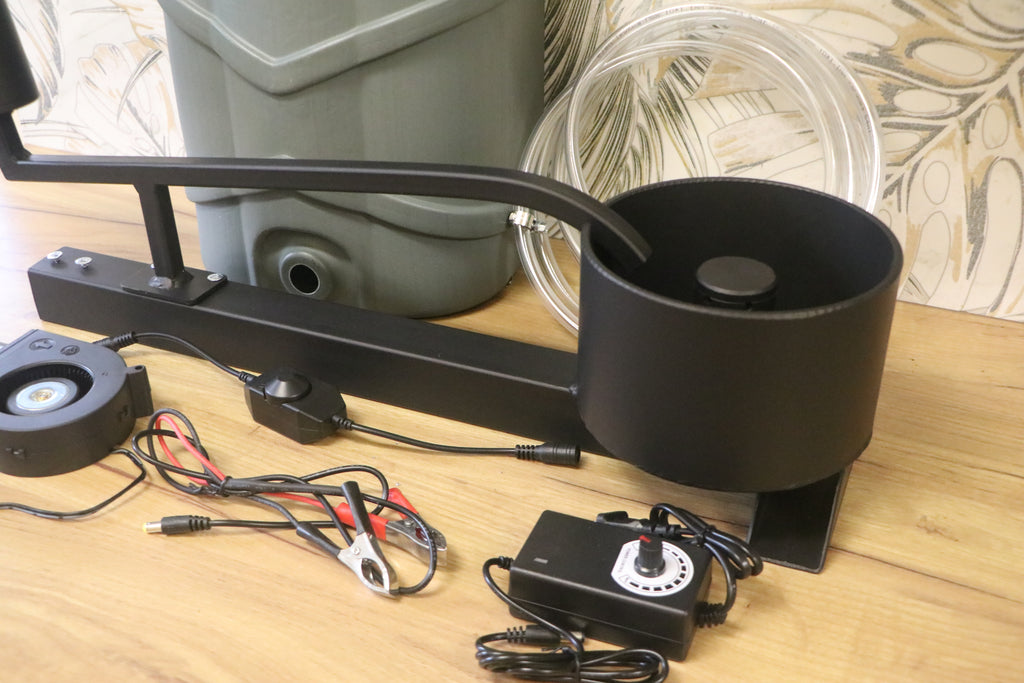

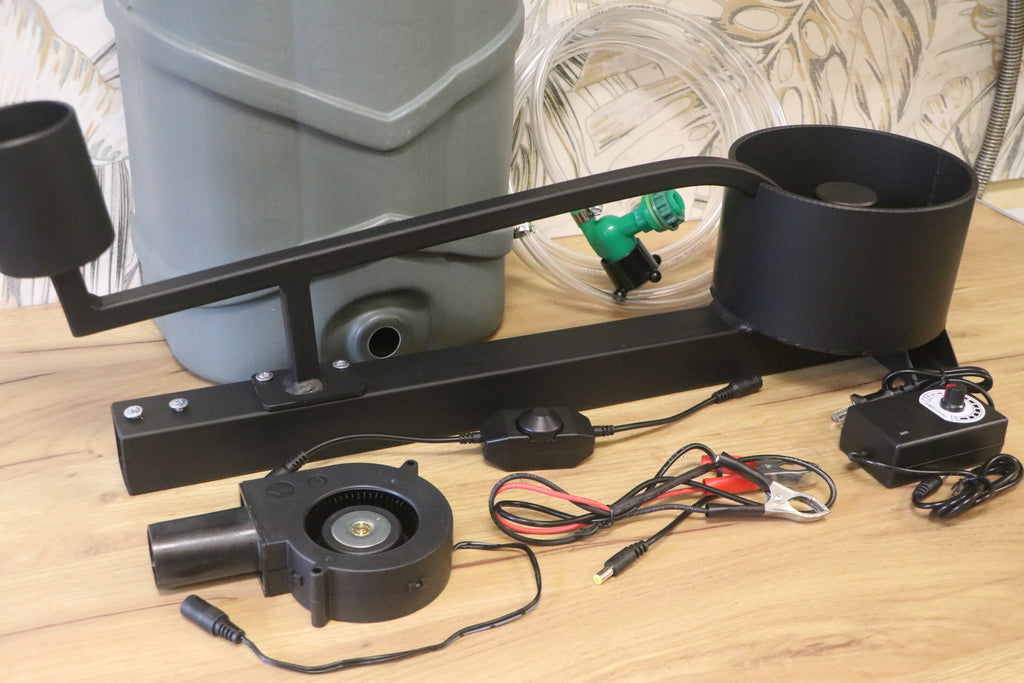

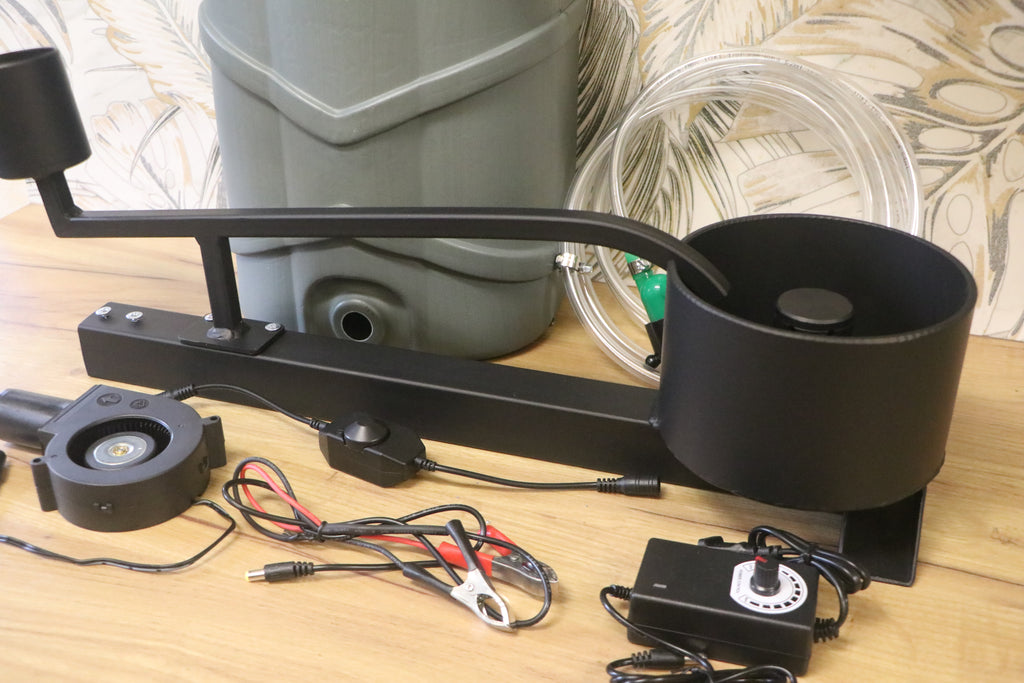

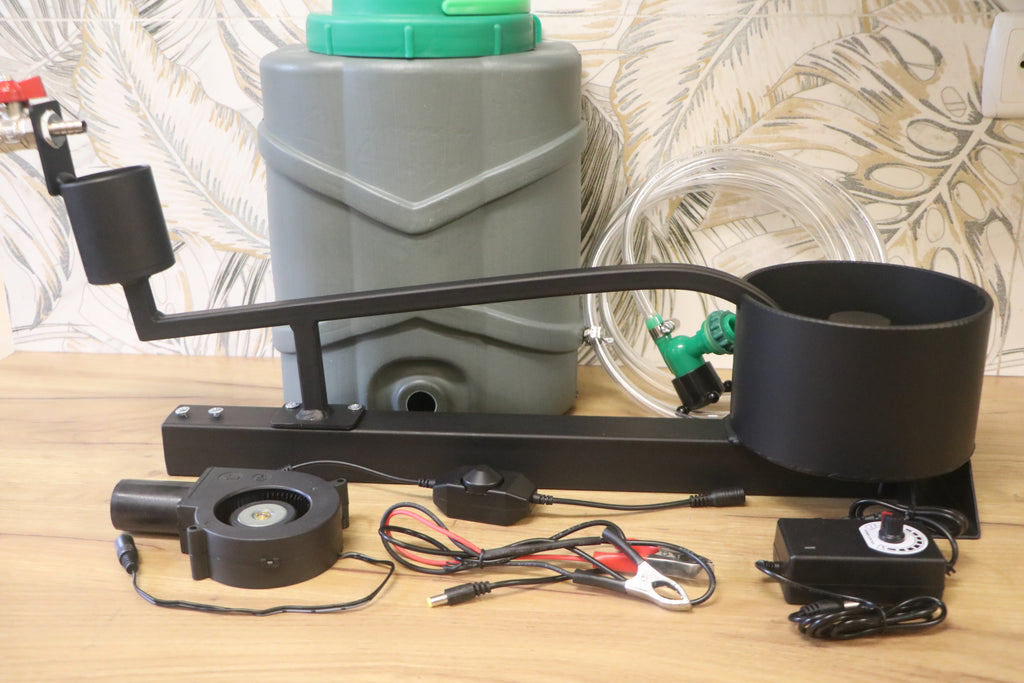

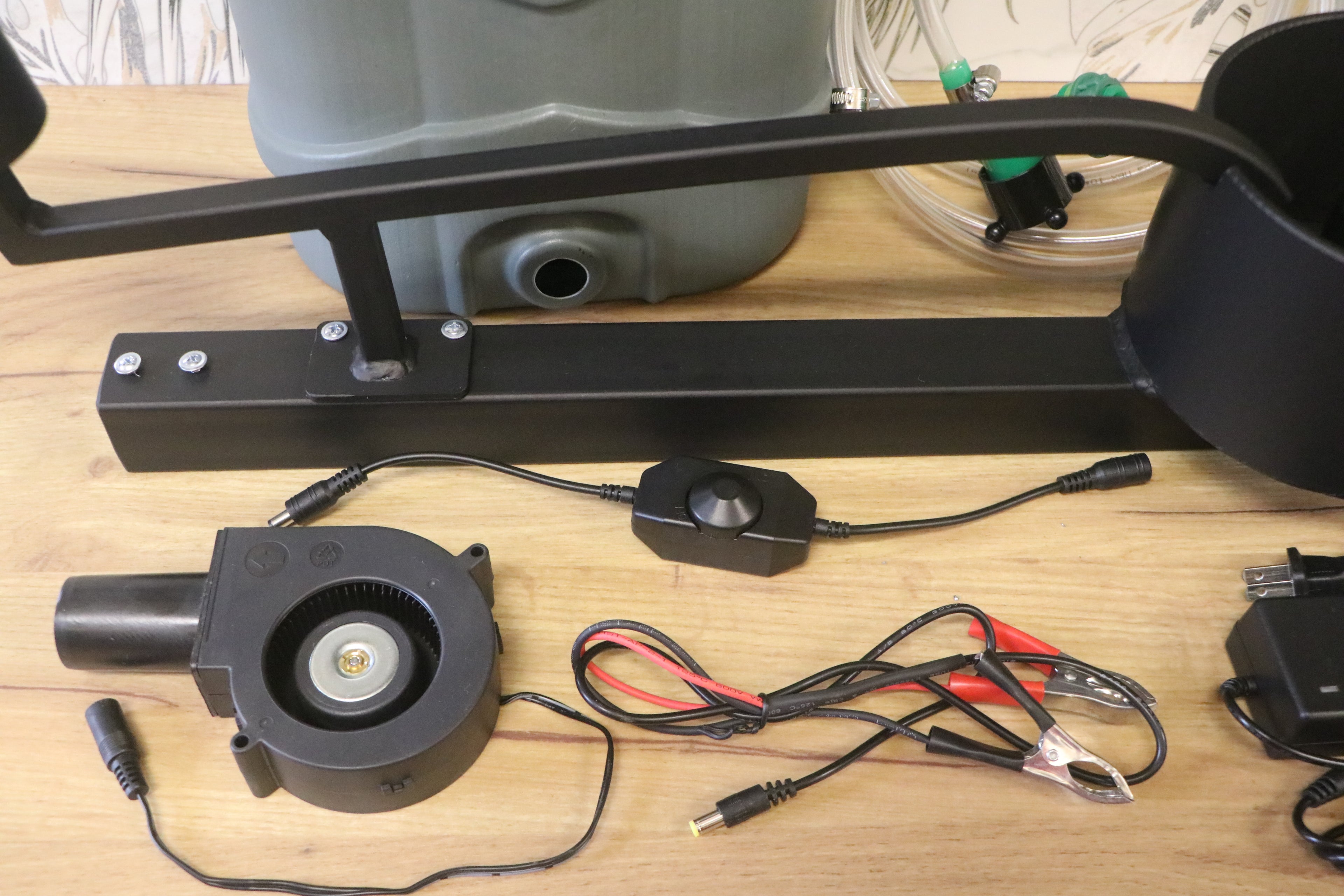

The kit includes:

Burner

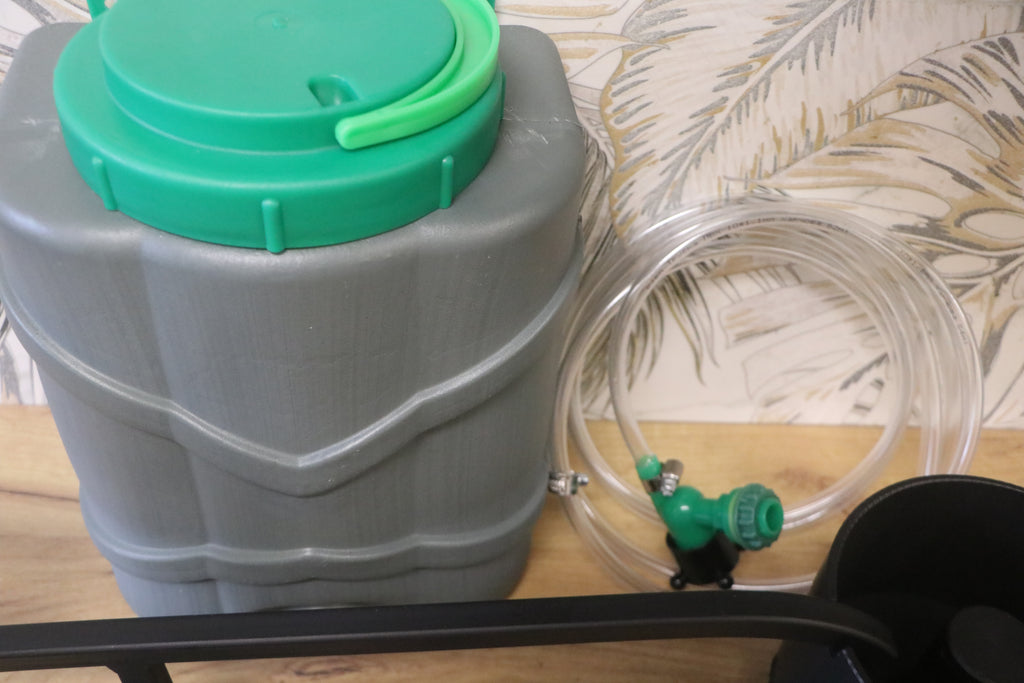

10-liter fuel tank

Fan (up to 5000 rpm)

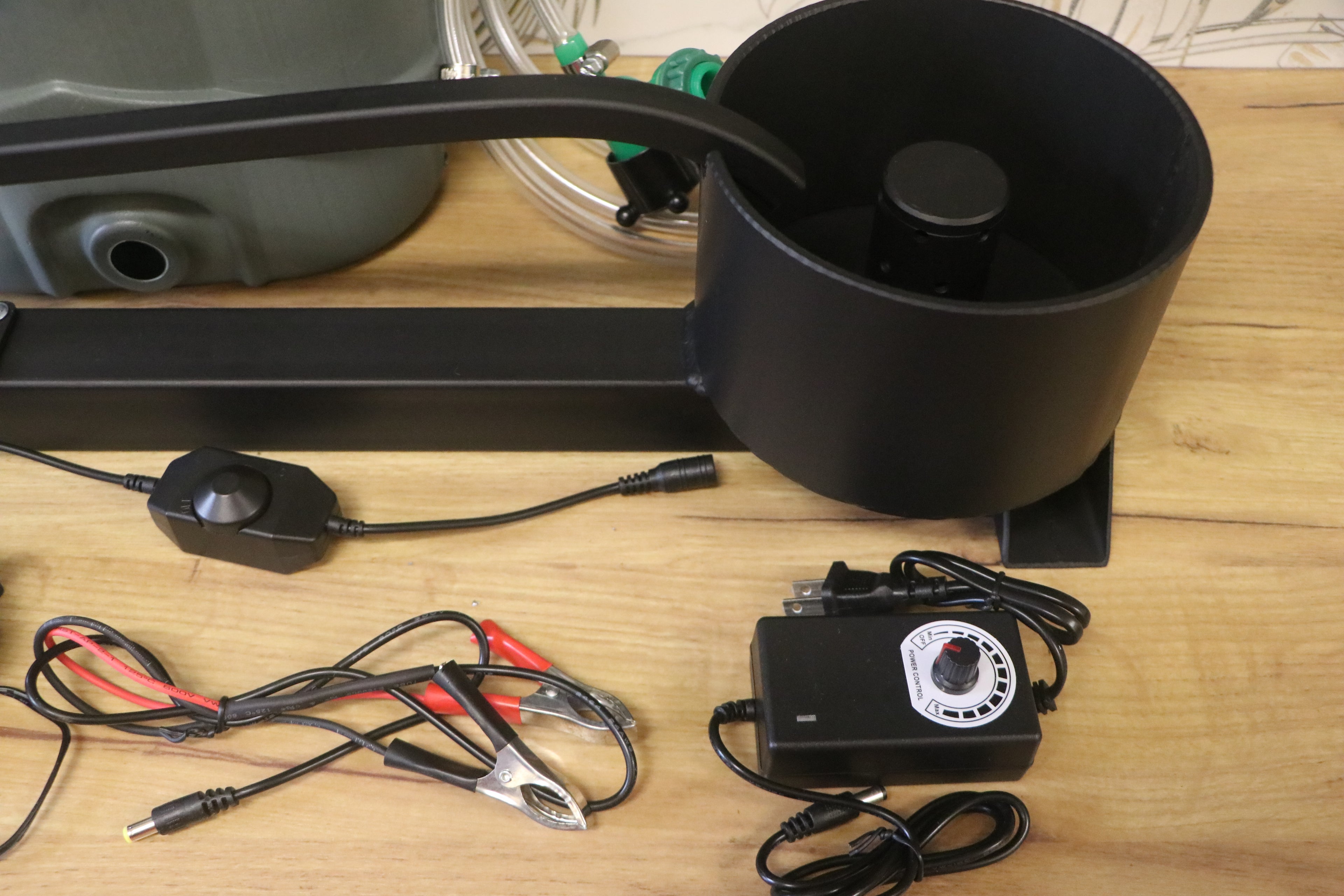

Speed controller (100–220 V)

3-meter hose

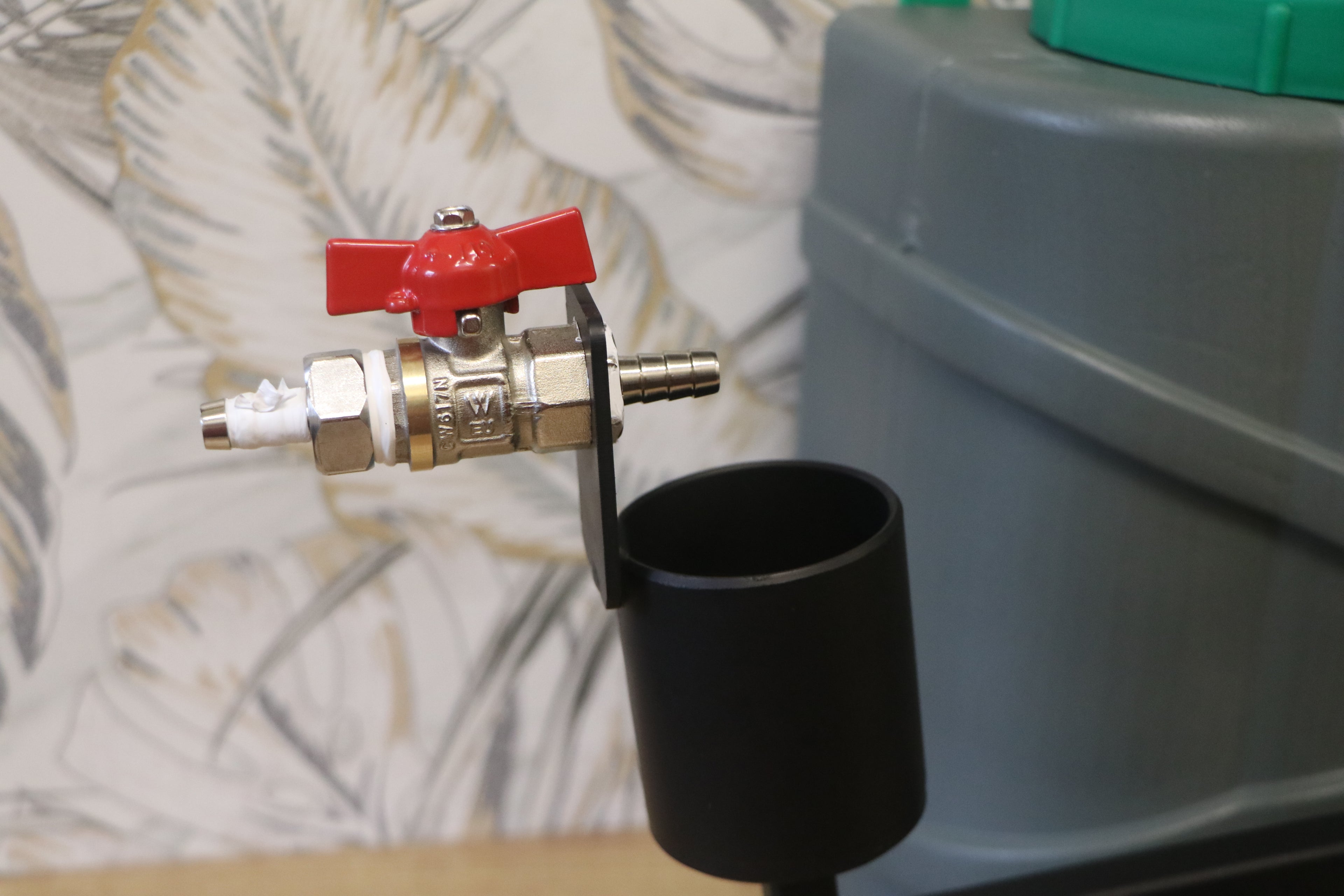

Ball valve

Alligator clips for connecting to a 12 V battery

A controller for adjusting fan speed when operating on battery power.

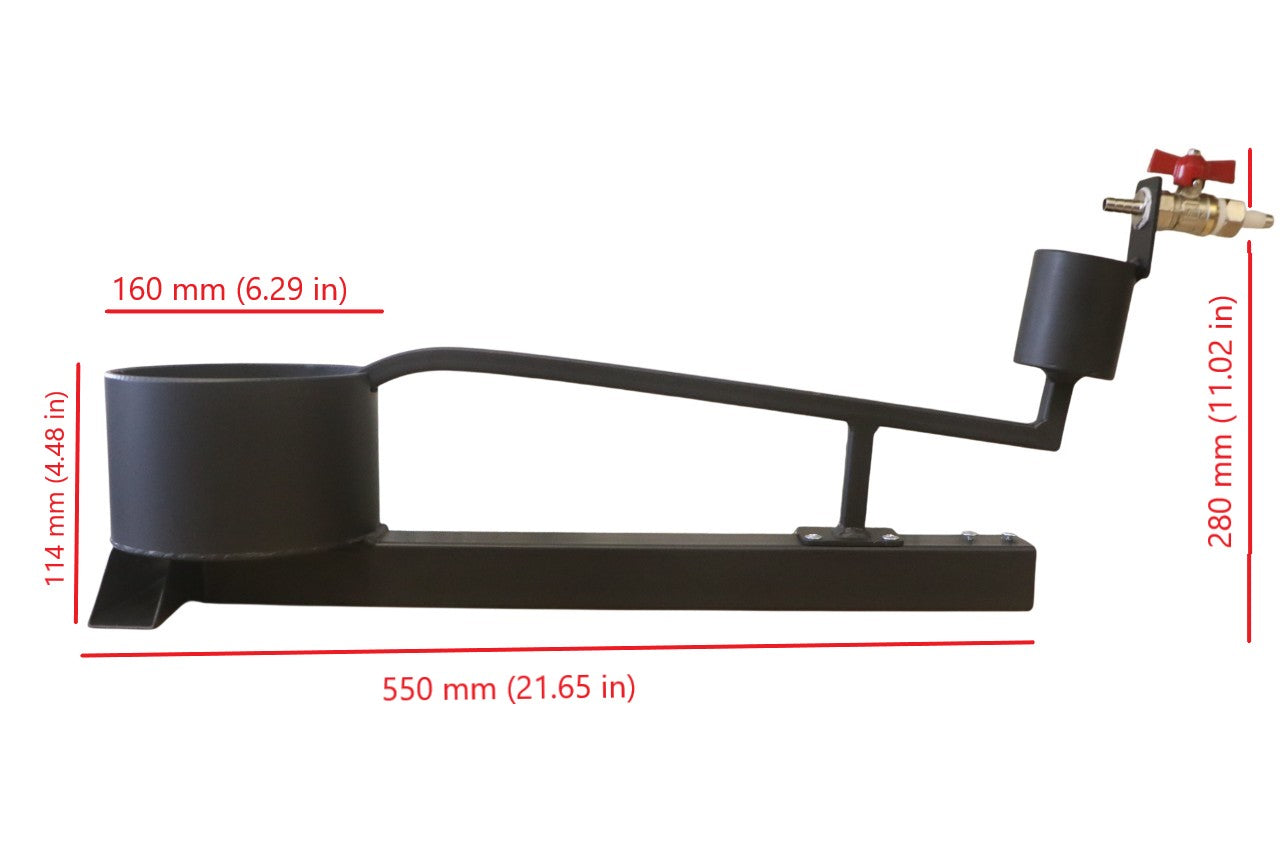

Dimensions:

Burner:

Outer diameter: 160 mm (6.29 in)

Height: 114 mm (4.48 in)

Length (without fan): 550 mm (21.65 in)

Length (with fan): 650 mm (25.59 in)

Overall height: 280 mm (11.02 in)

Heat output:
Up to 20 kW

Important safety information:

For fire safety and to prevent excessive heat loss, a metal protective screen (not included) must be installed over the firebox opening.
