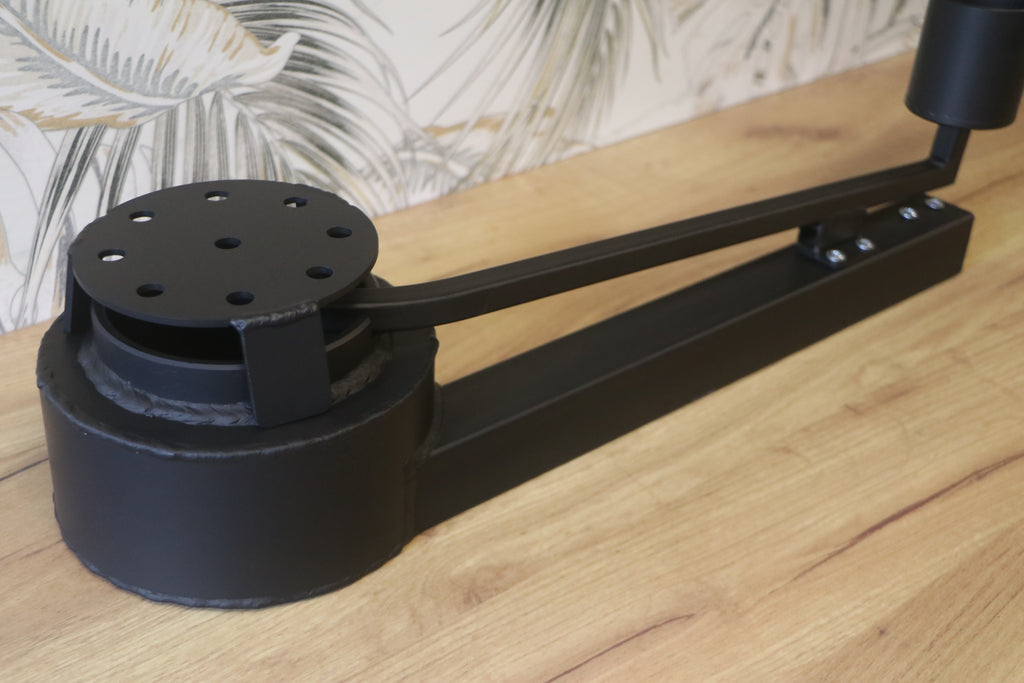

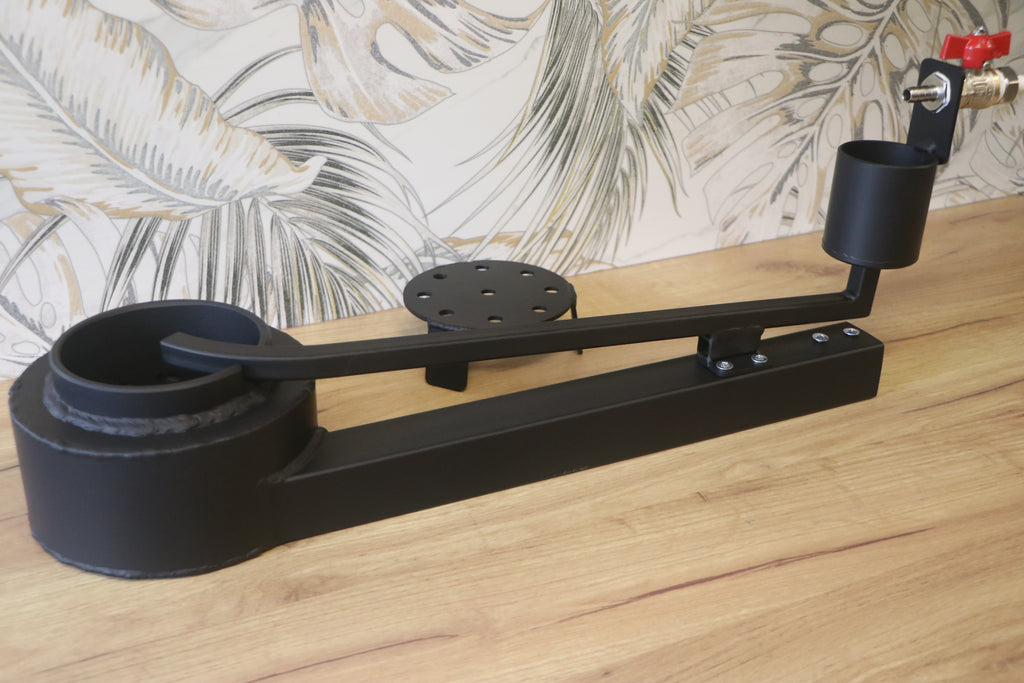

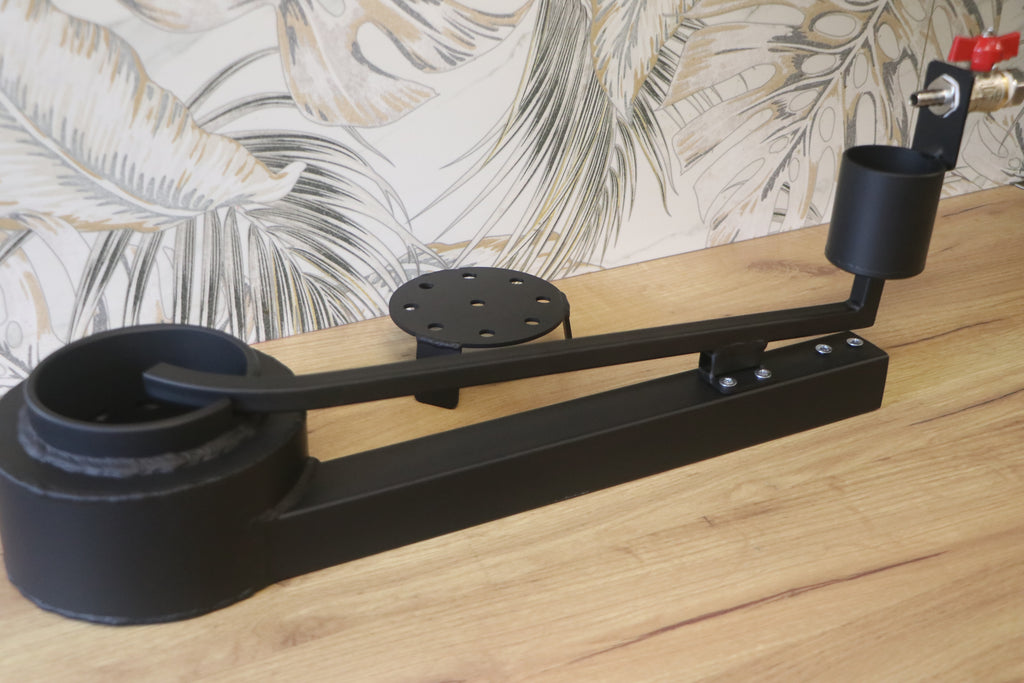

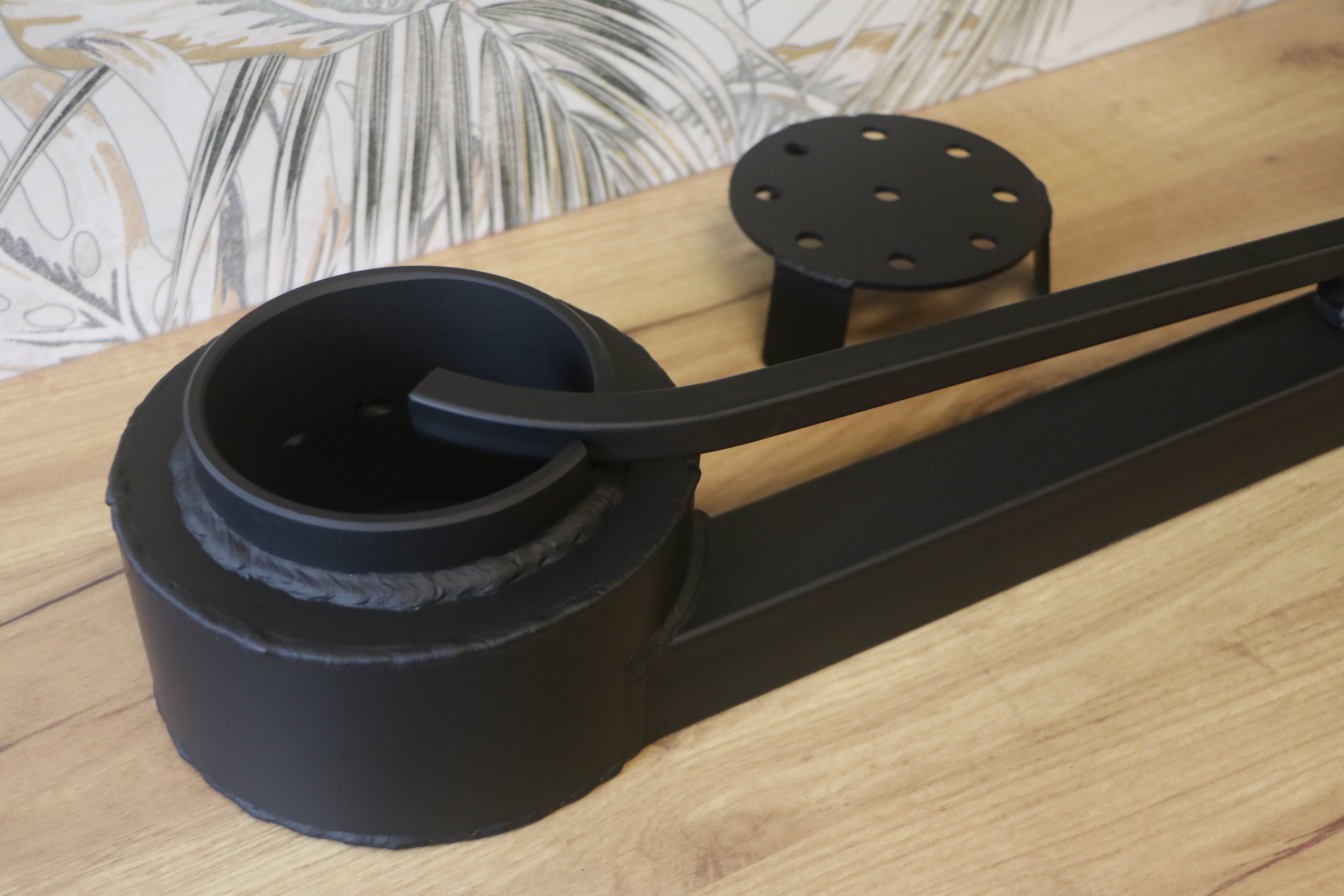

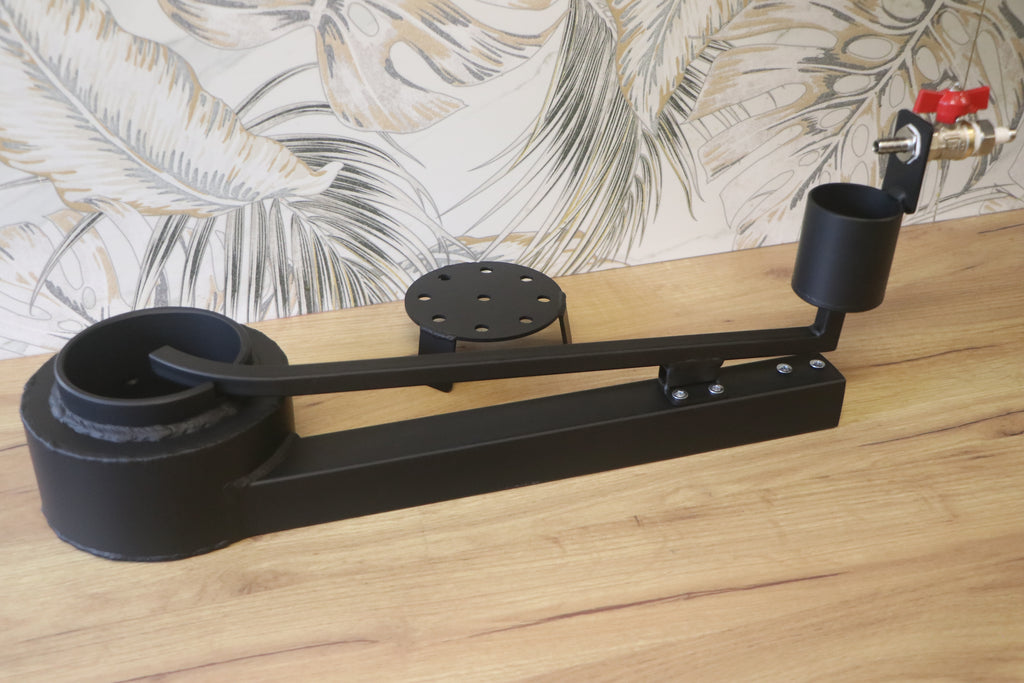

Waste oil burners 15kWt + Ball valve
$154.00
Waste oil burners (any type of oil is suitable—motor oil, transmission oil, vegetable oil, etc.).
These burners are used in wood-burning stoves and solid-fuel boilers.
Waste oil consumption: (0.8–1.5 L/h).
The combustion intensity is regulated by the oil flow through the valve and the air supply.
Included components:
- Waste oil burner.
- Oil supply tube.
- Flame splitter

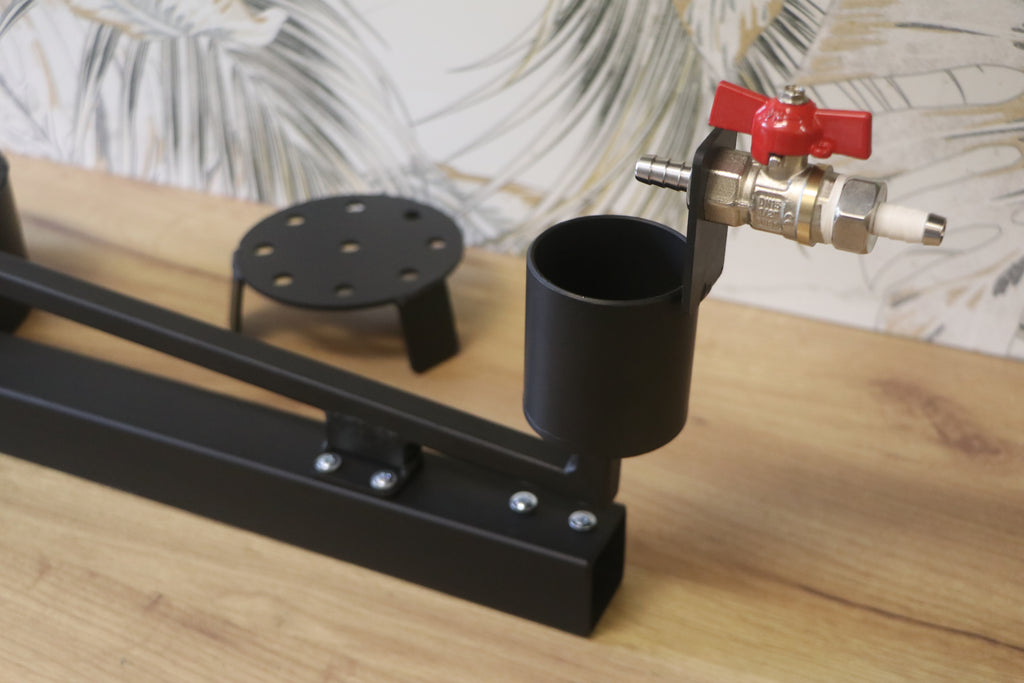

- Ball valve
- Dimensions
- Burner — outer diameter F — 160 mm (6.29 inches), bowl diameter F — 114 mm (4.48 inches). Height — 100 mm (3.93 inches).
-Length (without fan) — 530 mm (20.86 inches)
-Length with fan — 630 mm (24.80 inches)
-Height — 250 mm (9.84 inches)
-Maximum burner output when using waste oil — up to 15 kW of thermal energy.
-For fire safety and to prevent excessive heat loss from the room—be sure to install a sheet metal protective screen over the firebox opening!!!! (not included).
-Warning! — Do not leave the waste oil burner unattended for extended periods while it is in operation!!!
