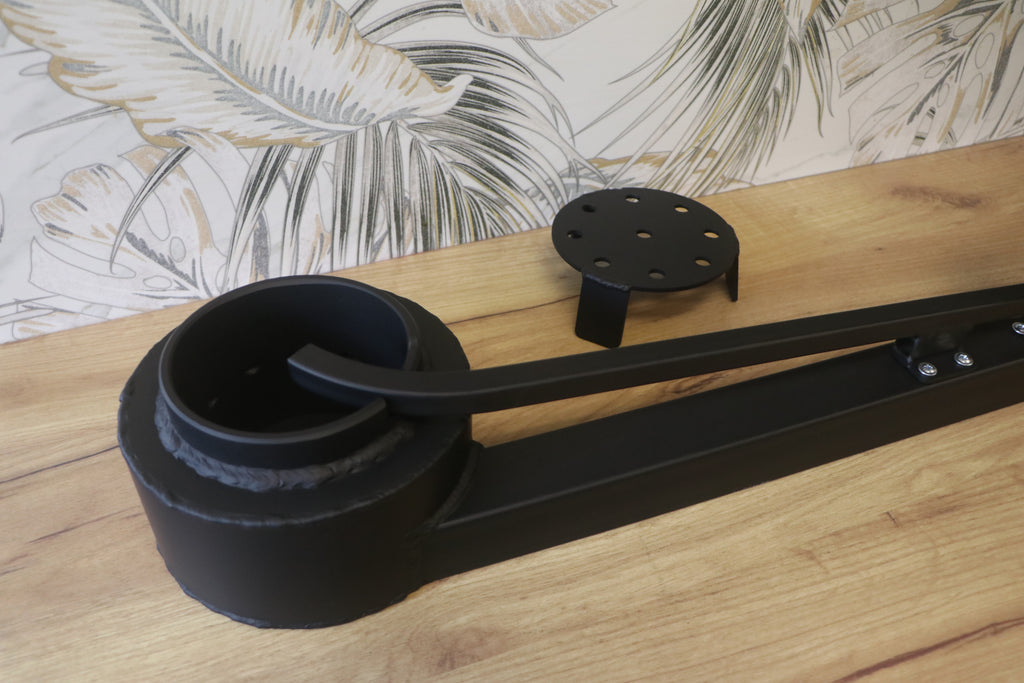

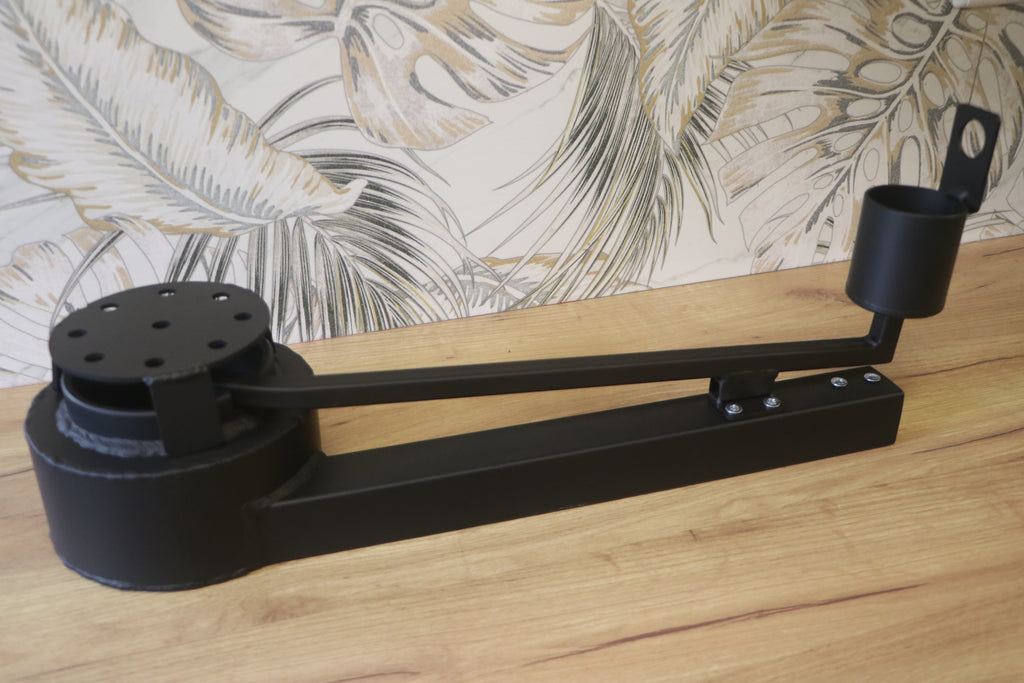

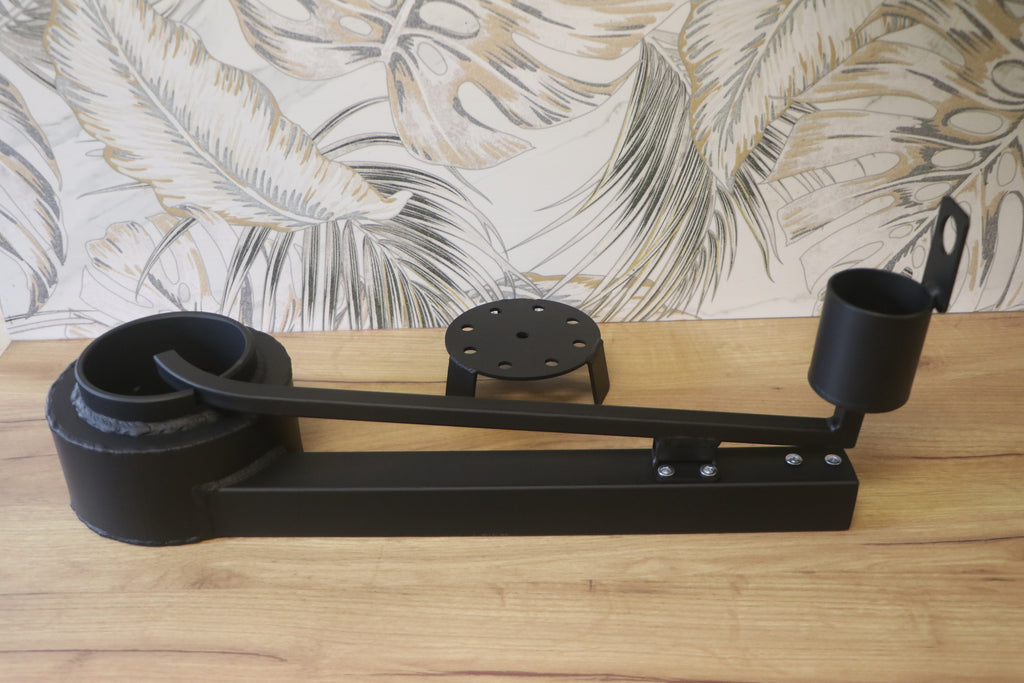

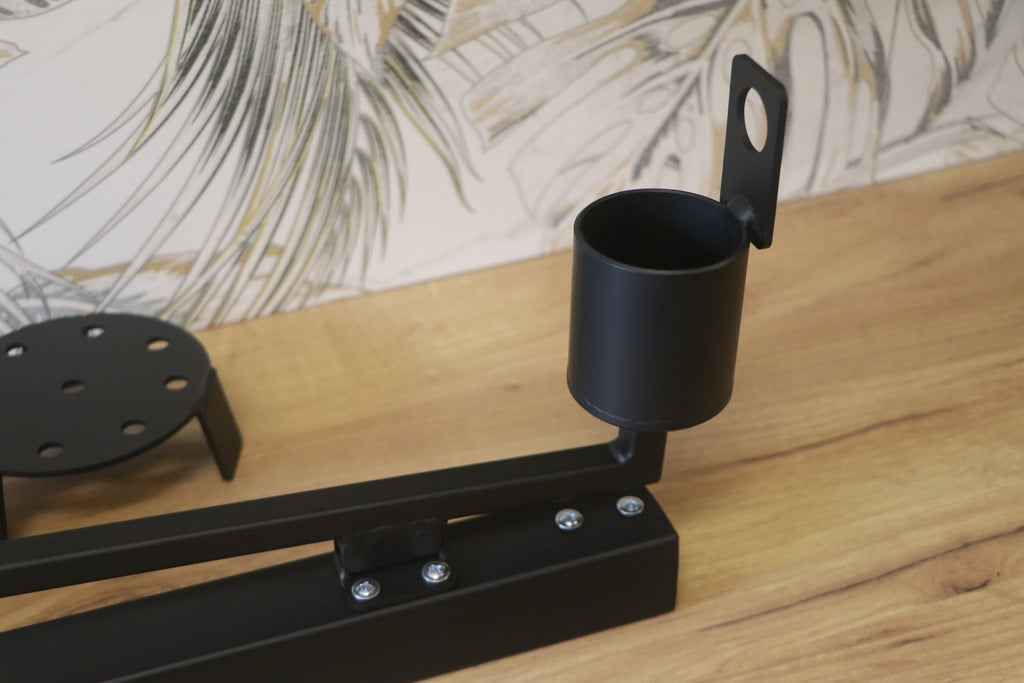

Waste oil burners 15KWt
$149.00
Used oil burners (any type of oil is suitable—motor oil, transmission oil, vegetable oil, etc.).
These burners are used in wood-burning stoves and solid-fuel boilers.
Used oil consumption: (0.8–1.5 L/h).
The combustion intensity is regulated by the oil flow rate through the valve and the air supply.
Included components:
- Waste oil burner.
- Oil supply tube.
- Flame splitter
Dimensions: outer diameter F — 160 mm (6.29 inches), bowl diameter F — 114 mm (4.48 inches). Cup height — 100 mm (3.93 inches).
- Burner length: 530 mm (20.86 inches)
- Maximum thermal output of the waste oil burner — up to 15 kW.
-For fire safety and to prevent excess hot air from escaping the room—be sure to install a sheet metal protective screen over the firebox opening!!!! (not included).
-Warning! — Do not leave the waste oil burner unattended for long periods while it is in operation!!!
